WD-350A
Meetyou
842230
一、Technical parameter:
● Facility model: WD-350A type
● Facility overall size: ：L12000×W1100×H2100mm
● Facility overall size: Main equipment：L12000×W1100×H2100mm
Shrinkage machine：4200×1100×1700mm
● Wrappage max size:L2400×W650×H450mm
● shrinkage film material: PE
●shrinkage film thickenss:0.03-0.15mm
● thermo shrinkage tunnel max temperature: 160 - 260° adjust at will
● max output per minute:16-20 bag
● facility power：30Kw
● actual power：25Kw/h
● pressure requirement: 380V/50-60HZ
● facility weight: 2500
● air pressure: 0.6-0.8mpa
● working noise:≤65db
● import bottle convey belt width: 541mm
● fan：1.1Kw 3set 380V， 60W 6set 380V
二、basic configuration of equipment
● SIEMENS ： PLC controlling system
● SIEMENS：Touch Screen
● Taiwan Airtac pneumatic component 1set
● Taiwan Telta transducer 2set
● Stainless steel wing heating tube 12pcs
● China-USA cooperation Teflon convey belt.
● Shanghai HEMEI motor and Zhenjiang Taili worm derailleur.
● South Korea Autonics photoelectrical switch, approach witch
● thermo sealing knife aluminum casting heating board, even temperature, long usage life, our company special production.
●whole machine appearance plastic spray, machine rack adopt to high-quality carbonated steel, main part adopt to stainless steel.
● Wooden case and wrappage film separate package.
三、Product instruction
● frequency converter speed adjust、two segment convey device.

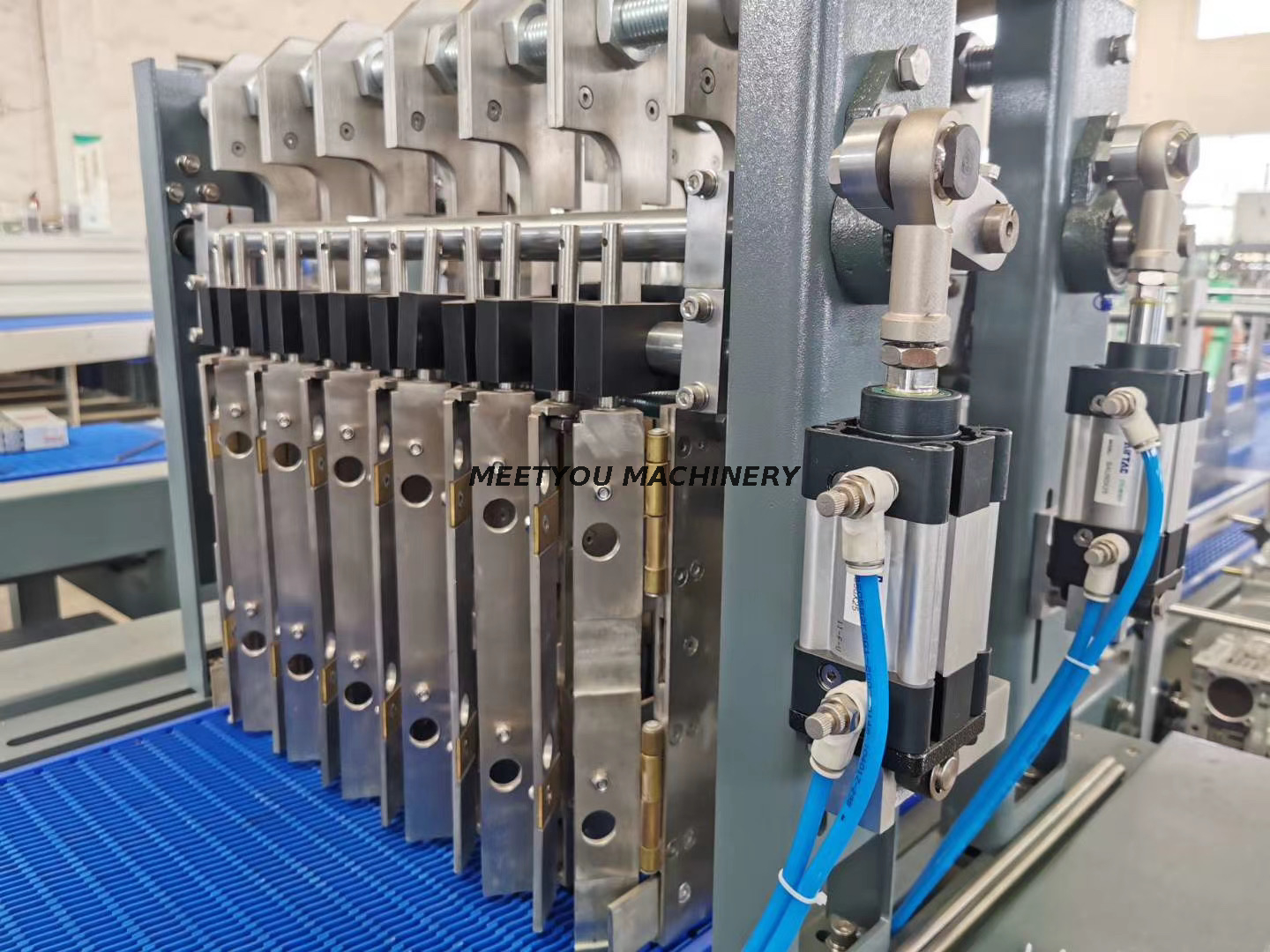

● Bottle pushing, thermo sealing and cutting whole movement adopt to pneumatic fracture.
● Proximity switch control film length
● Touch screen, PLC system greatly increase facility movement reliability.
● Three-wind recycle fan machine, ensure shrinkage tunnel inside even temperature.
● Super big wind-volume cooling system, ensure quickly get into shape .
● Anti-high temperature teflon convey belt, convey steadily, high-strength anti-abrasion.
● Frequency limitless speed adjust convey belt frame.
● convey belt height can make according client requirement, adjust range:±100mm
● Wing stainless steel heating system, endurance
● Meet with product instant stop requirement product-bearing rack device ensure production line consistency.
四、Technical requirement:
1、package type：
(1)350/500/550/600ML big bag：4×6，4×5 ;small bag、3×4，3×5 four type of package.
(2)1L／1.5L／2L／2.5L big bag：3×3，3×4;small bag、2×2，2×3 four type f package
2、Regarding can, we suggest adopt to package with tray , pack steadily.
3、package speed：16－20bag／min
4、meet with pre-treatment filling speed of filling machine.
(1) 350/500/550/600ML big bag：4×6，4×5，(24000－29000b／hr）、small bag：3×5，3×4，(15000－18000b／hr）.
(2)1L／1.5L／2L big bag：3×4，3×3(10000－14000b／小时）、 small bag：2×3，2×2（5000－7000b／h）.
5、package material：PE thermo shrinkage film width（200－600mm），thickness（0.03－0.12mm）
