ZX-2
Meetyou
842230
Carton Packing system

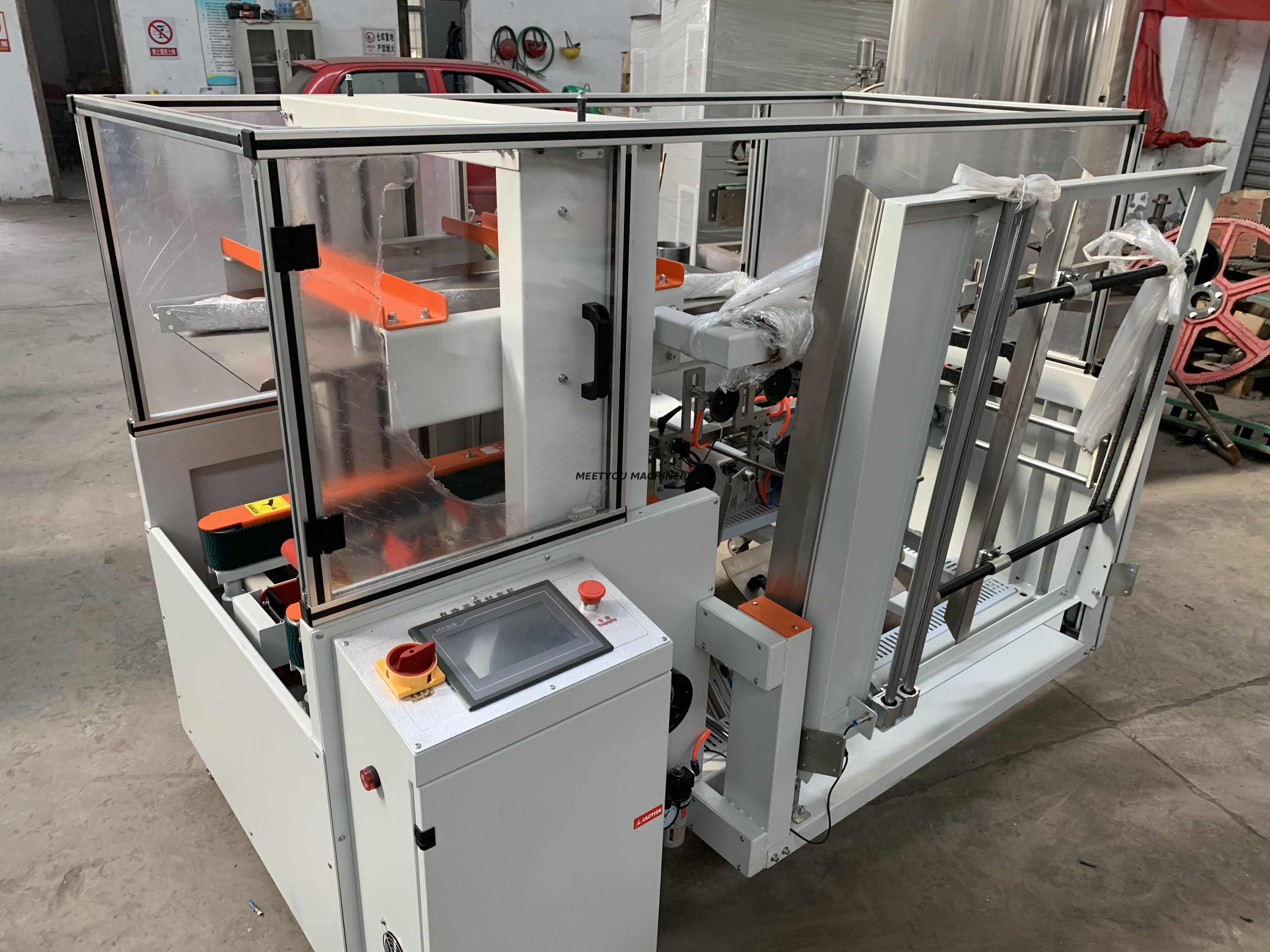

1 Carton Erector machine
1、Parameter：
l Overall size：L3500*W1250*H1850mm
l Speed: 18-20carton/min
l Suitable carton size: L350～420 * W200～400 * H120～300mm
l Power：380V/50HZ、1.75KW
l Gas: 6-8kg
l Motor： Shengbang（Taiwan）
l Cylinder： Airtac (Taiwan)
l PLC：Siemens（Germany）
l Contactor： Omron (Japan)
l Machine body：Carbon steel welding, surface spray treatment
2、Advantage：
l Folding and grabbing type: automatically correct the right angle and push the box accurately
l Compact design: easy to install
l Box device: size carton,put the box accurately
l Tape bonding bottom: clean, accurate, touch

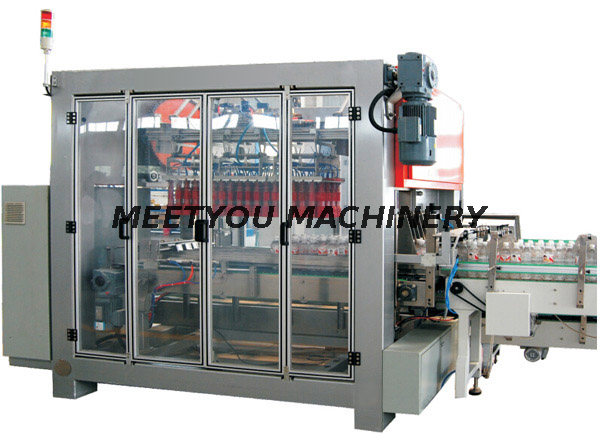

2)Lift type packing machine
The picture is only for reference
Parameter
1、Applicable product description::
l Packing box finished product suitable All kinds of PET, PE, PP bottle,automatic box type packaging
2、Technical specifications:
l Speed：18-20carton/min
l Suitable carton size：width：160mm-480mm，length：200-762mm
3、Required equipment specifications:
l Voltage：3P 380V 50HZ
l Power: 6 kw
l Air pressure: 6.0 kg/cm2
l Air consumption: 800L
4、Component brand：
l PLC：Mitsubishi
l Component：Japanese brand
l Cylinder：Airtac (Taiwan)
l Servo Motor：Schneider
Machine introduction
Machine usage:
l This machine is used for packing boxes of PET, PE, and PP bottles. Bottles include shaped bottles, bottles with nozzles, and capped lids. Widely used in daily chemical, beverage, food, medicine and other industries.
Process Overview:
l The machine has a mesh belt conveyor to arrange the bottles neatly, and is divided into six rows, five rows or four rows (varies according to the packing method). The prefabricated box is transported to the packing station under the product, and the product is accurately positioned by using the sliding mechanism. Sliding in the carton, the product is packed in the output of the conveyor line.
Features:
l 1)Unique slide-down mechanism to reduce impact and collision;
l 2)Main servo drive: guarantee packing speed and accuracy;
l 3)Buffer mechanism under the drop box mechanism to reduce the loss of parts;
l 4)Change the product quickly and easily;
l 5)Lightweight, pressure-sensitive products have advantages
3)Automatic Carton Sealing Machine
Main Parameter：
l Suitable carton size:L200-600*W150-500*H120-500mm
l Table height:680-800mm
l Sealing Speed:15-25carton/min
l Power：220V/50HZ
l Machine sie：L1700*W800*H1450mm
l Electricity controller：OMRON Japan
l Cylinder：Airtac Taiwan
l Motor：CPG Taiwan
