Information of Hot Melt Labeling Machine for Round Bottles
Name: Hot Melt Labeling Machine for round bottle
Max Labeling speed: 6000-18000BPH ( can be adjusted by customer requirements)
Specification of product: Round bottle

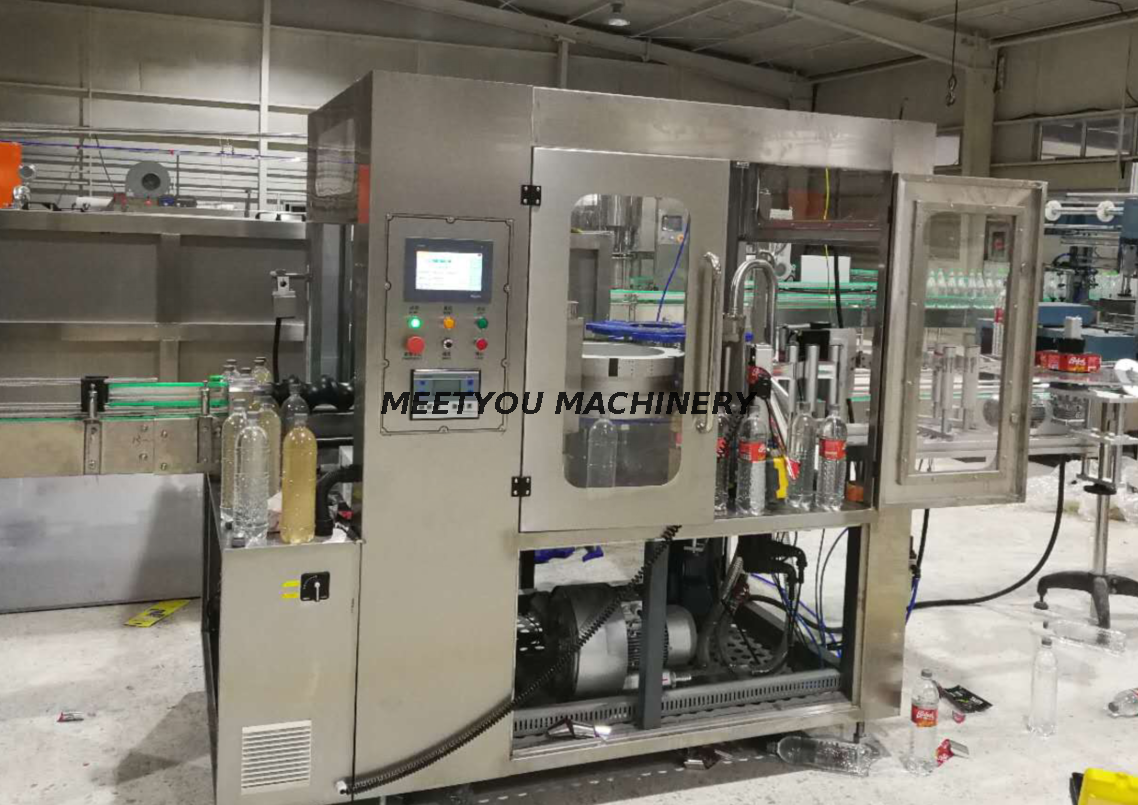

The following two type bottles were labeled by the Hot Melt Labeling Machine which was produced by our factory.
Technical Parameters:
Main Motor | 1.5KW |
Machine dimension | 2500mm x 1300mm x 1800mm |
Brand of Main Motor | OMITER |
Controller | SCHNEIDER |
PLC | SCHNEIDER |
Servo motor | SCHNEIDER |
Sensor | SICK |
Encoder | SICK |
Low voltage electrical component | SCHNEIDER |
Voltage | 380V 50HZ 3P |
Total Power | 8.5KW |
Label type | Circling |
Bottle type | Round bottle Dia40-100mm, Height80-350mm |
Label size | L:125-325mm, H:20-190mm |
Gluing type | Rolling gluing( Rolling coating)(10mm with each end) |
Label storing type | Circular labeling |
Air pressure | 0.5-0.8bar |
Air consumption | 0.2m3/min |
Weight | 3000kg |
