SLM-150
Meetyou
842230
Introduction of Production:

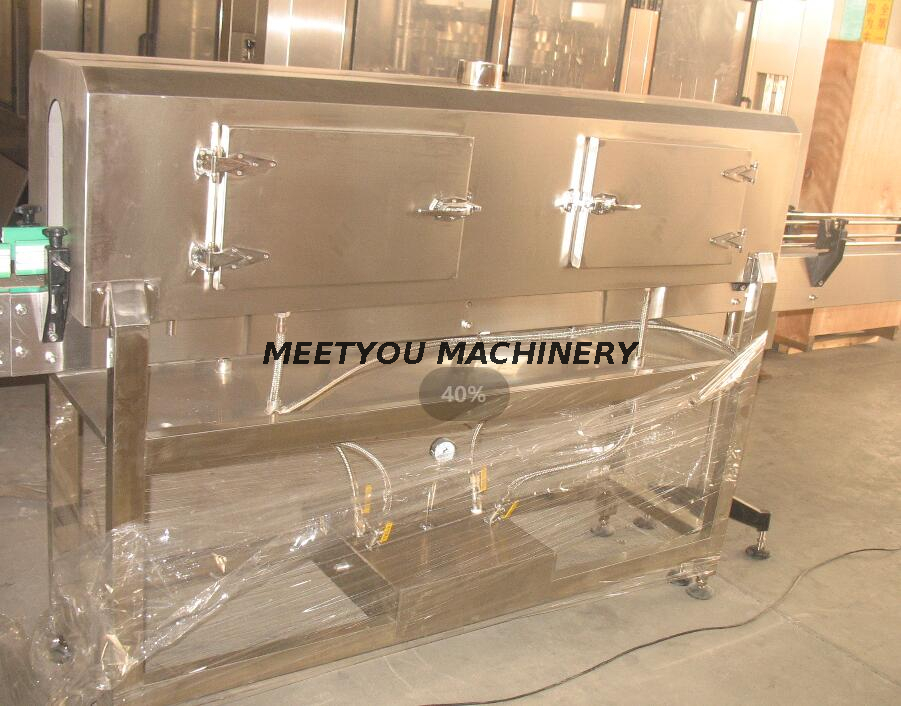

This machine adopts international advanced technology; cover the circle label on the pet bottle. And then hot shrinking to fix on the position which bottle body is designed.

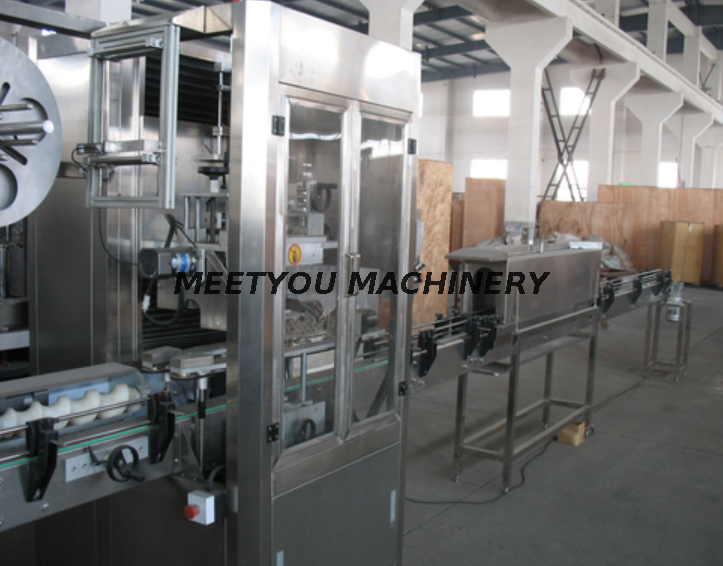

This machine’s structure is compact, and suitable for the production line of different direction and different height.

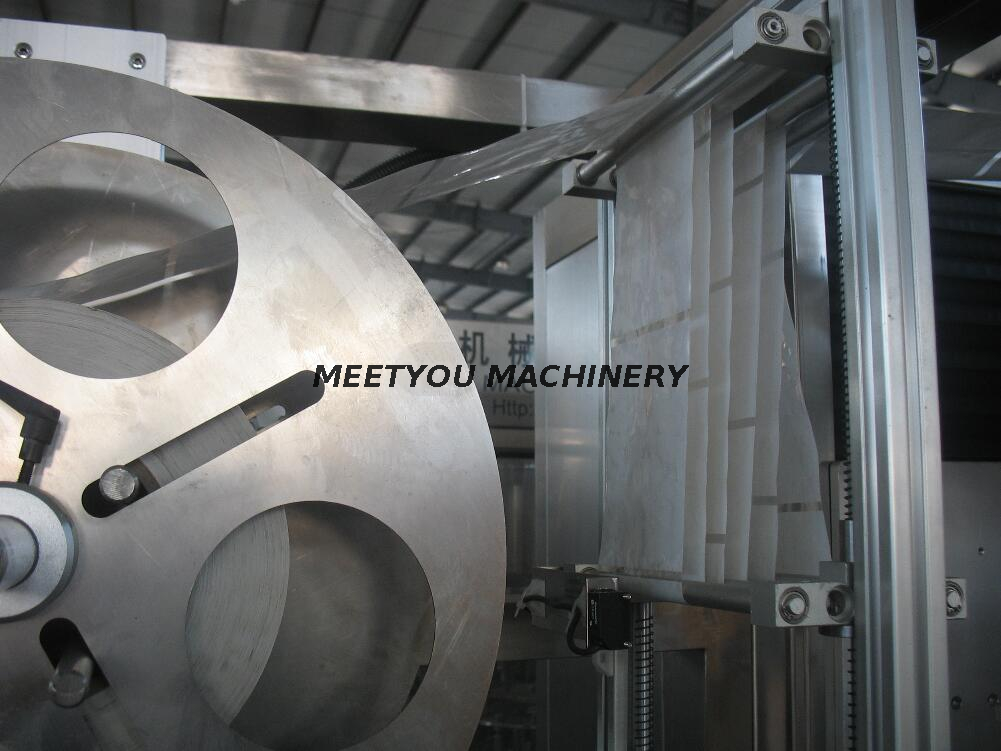

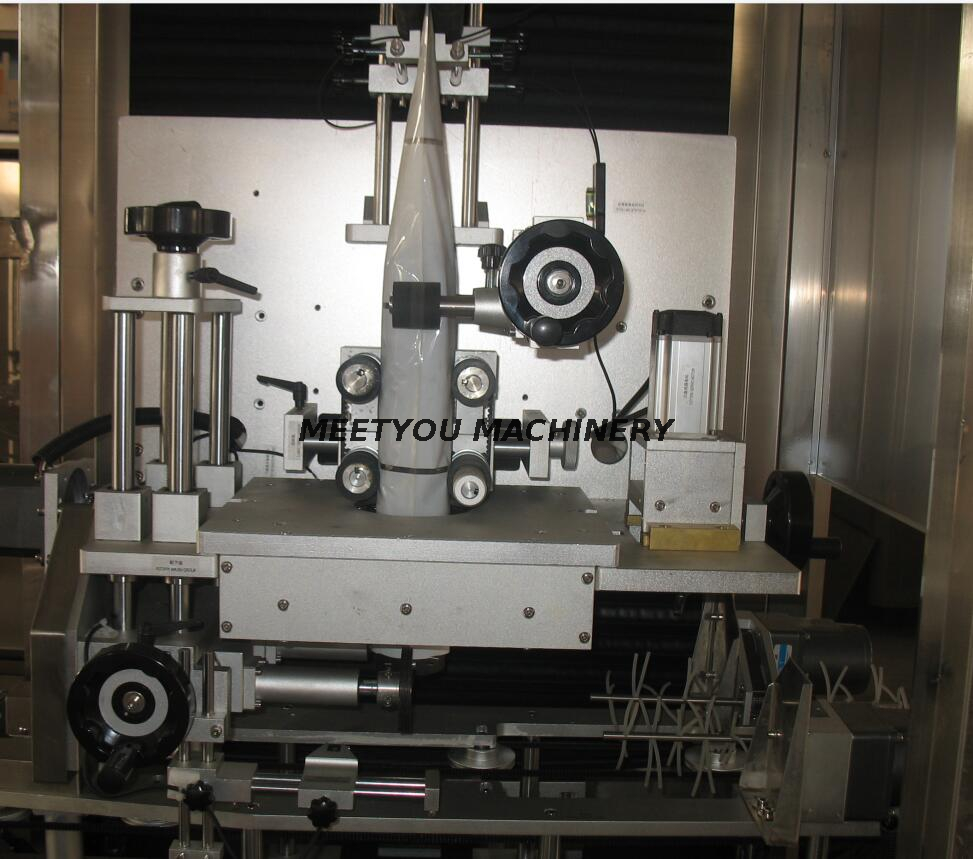

The machinery part adopts combination designing of modularization, and makes the machine reasonable. The height adjustment adopts motor fluctuating; it is convenient to replace the material. The special cutter head designing make the film-rolling cut more exactly and reliably.
Main Technical Specifications
Model | |
Capacity(bottle/Hour) | 2000-3000 |
Bottle Diameter(mm) | Φ50-φ90 |
Suitable Label Material | PVC |
Label Thickness(mm) | |
Overall Dimension(mm) | 2400×1000×2100 |
Weight(kg) |

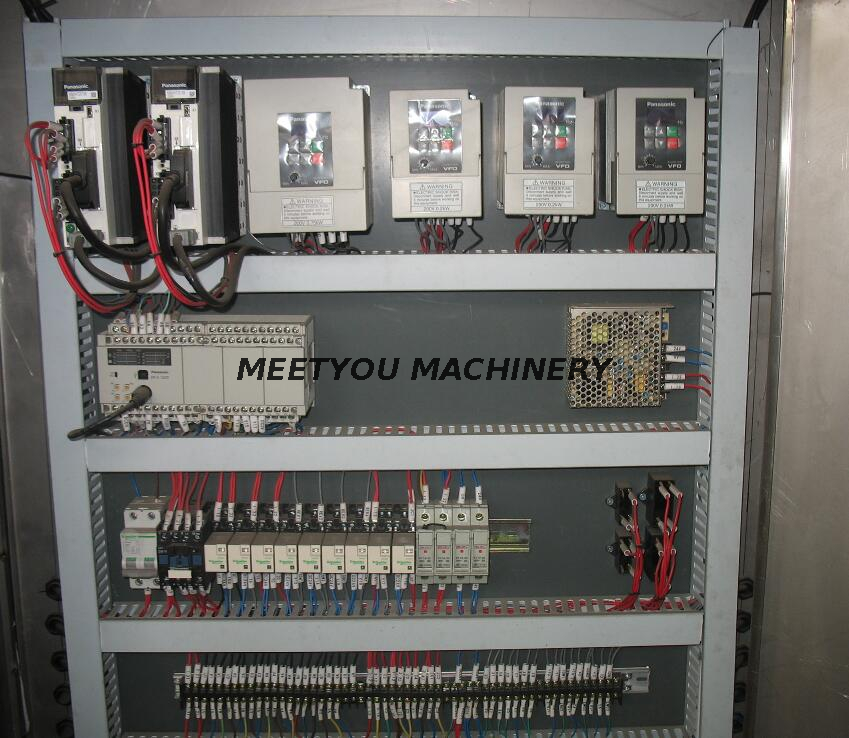

Main configuration purchased overseas list (SLM)
No. | Name | Brand | Producer |
1 | SUS304 Stainless Steel Material | ||
2 | Motor | T.W.T. | Taiwan |
3 | Bearing | NSK, MNB,EZO,IJK | Japan |
4 | Servo Motor | PANASONIC | Japan |
5 | Servo System | PANASONIC | Japan |
6 | PLC | SIEMENS | Germany |
7 | Transducer | PANASONIC | Japan |
8 | Touch Screen | SIEMENS | Germany |
9 | Contactor | PANASONIC | France |
10 | Sensor | KEYENCE | Japan |
