QGF
Meetyou
842230
We supply complete solution for the recycled bucket water bottling machine,including Water treatment system / Decapping machine / Inside brusher / Externer brusher / Automatic 5 Gallon rinsing filling capping machine / Automatic Cap sleeve label machine / Code sprayer / Film wrapping machine / Automatic 5 gallon palletizer system

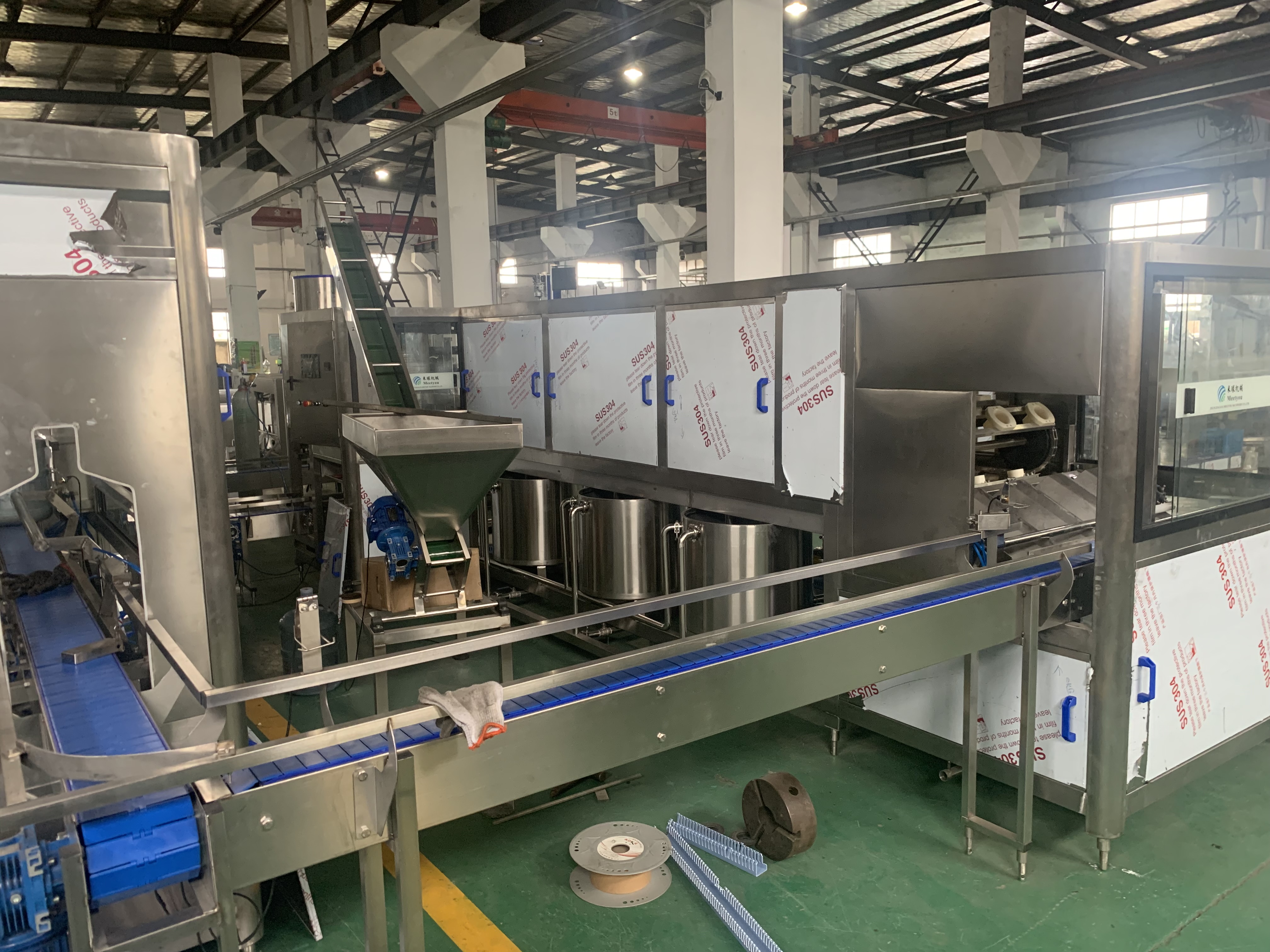

The filling line specially for 3-5 gallons barreled drinking water ,with type QGF-150,QGF-300,QGF450,QGF-600,QGF-600,QGF-900,QGF-1200.It integrateds bottle washing,filling and capping into one unit ,in order to achieve the purpose of washing and sterilizing,The washing machine uses multi-washing liquid spray and thimerosal spray,the thimerosal can be used circularly,The capping machine can be cap barrel automatically ,The line equips with water spraying device in order to ensure those caps sterile and clean ,it also can automatically carry out barrel,washing,steriizing,filling,capping,counting and products discharging,with complete function,modern design and high degree of automation ,It is a new kind of barreled water auto producing line ,which integrates mechanism,electricity and pneumatics technologies together Complete Line Flow Chart :
1.Decapping Machine ; 2.External Brusher ; 3. Automatic 5 Gallon Rinsing Filling Capping Machine ; 4.Cap elevator ;5.Code sprayer ; 6.Light checker ; 7.Cap film shrinker Machine ; 8 .Plastic bag wrapping machine ; 9.Bucket collect
Main Technical Specifications:
Model | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF1200 |
Filling Heads | 2 | 3 | 4 | 6 | 6 |
Volume (L) | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
Barrel Size (mm) | ￠270×490 | ￠270×490 | ￠270×490 | ￠270×490 | ￠270×490 |
Capacity (barrel/hour) | 300 | 450 | 600 | 900 | 1200 |
Gas Pressure (mpa) | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.9 |
Gas consumption (m³/min) | 0.37 | 0.6 | 1 | 1.5 | 2.2 |
Motor Power (kw) | 1.75 | 3.8 | 7.5 | 9.7 | 12.5 |
Motor Voltage (V) | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
Weight (kg) | 600 | 1000 | 1300 | 1800 | 2200 |
Overall Dimension (mm) | 4900x1800x1900 | 5700x2000x1900 | 6300×2200×1900 | 6800x2200x1900 | 7800x2200x2000 |
